MIDAS CTD Details

CTD Cast Details

Cast nr 6264 taken on 2023-02-15 at 51°11'8.6", 2°42'7.9"

Station:

120

Date CTD clock:

2023-02-15T08:40:56Z

Date GPS clock (UTC):

2023-02-15T08:43:19Z

Latitude:

51°11'8.6"

Longitude:

2°42'7.9"

Position based on:

True Position

Collected on Trip:

4301

Other Links:

Cruise

CTD Type:

SBE 25plus

Serial Number:

4886

NOTE:

The CTD casts where processed with Seasoft following the Seabird guidelines for the SBE19 and SBE19plus.

The 'flag' column in the following table is the QC flag for each scan generated during the several processing steps. The scans marked good have a flag of 0.0000e+00. Missing values are marked with -9.990e-29.

Y axis

X axis

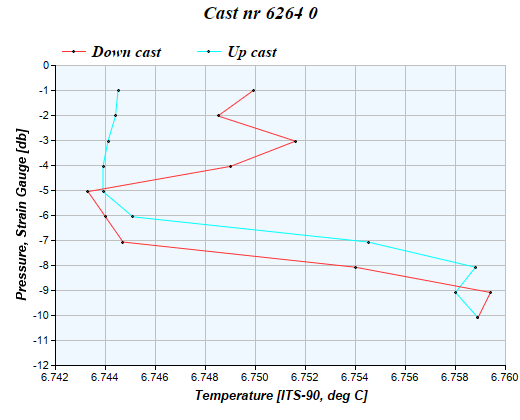

Show cast

Legend

prdM	Pressure, Strain Gauge [db]
t090C	Temperature [ITS-90, deg C]
c0uS/cm	Conductivity [uS/cm]
obs3+	OBS, D & A 3plus [NTU]
altM	Altimeter [m]
par	PAR/Irradiance, Biospherical/Licor
flECO-AFL	Fluorescence, WET Labs ECO-AFL/FL [mg/m^3]
turbWETntu0	Turbidity, WET Labs ECO [NTU]
depSM	Depth [salt water, m], lat
sbeox0Mg/L	Oxygen, SBE 43 [mg/l], WS
sbeox0PS	Oxygen, SBE 43 [% saturation], WS
sal00	Salinity, Practical [PSU]
svCM	Sound Velocity [Chen-Millero, m/s]
density00	Density [density, kg/m^3]
nbin	number of scans per bin
flag	flag

Data

prdM	t090C	c0uS/cm	obs3+	altM	par	flECO-AFL	turbWETntu0	depSM	sbeox0Mg/L	sbeox0PS	sal00	svCM	density00	nbin	flag
1.009	6.7499	3.3408e+04	2.6702	-0.09	2.1603e-01	2.5928	1021.6473	1.000	9.5074	96.811	33.1793	1475.42	1026.0228	5	0.0000e+00
2.018	6.7485	3.3398e+04	2.4095	-0.09	2.6169e-01	2.5937	1021.6697	2.000	9.2481	94.161	33.1690	1475.42	1026.0195	8	0.0000e+00
3.026	6.7516	3.3384e+04	2.4793	-0.09	1.8218e-01	2.5924	1021.6376	3.000	9.0072	91.703	33.1497	1475.42	1026.0085	7	0.0000e+00
4.035	6.7490	3.3403e+04	2.8237	-0.14	8.9582e-02	2.5888	1021.6505	4.000	9.5356	97.095	33.1736	1475.46	1026.0323	6	0.0000e+00
5.044	6.7433	3.3510e+04	2.3506	-0.21	4.7623e-02	2.5827	1021.6370	5.000	10.6010	108.012	33.2957	1475.61	1026.1339	7	0.0000e+00
6.053	6.7440	3.3506e+04	2.3042	-0.21	3.3142e-02	2.5924	1021.6543	6.000	10.5552	107.544	33.2899	1475.62	1026.1339	7	0.0000e+00
7.061	6.7447	3.3507e+04	2.4875	-0.22	8.9735e-04	2.6438	1021.6387	7.000	10.5394	107.385	33.2903	1475.64	1026.1388	8	0.0000e+00
8.070	6.7540	3.3526e+04	2.7166	-0.23	1.1499e-03	2.6437	1021.6252	8.000	10.5453	107.476	33.3018	1475.71	1026.1512	9	0.0000e+00
9.079	6.7594	3.3539e+04	2.6091	-0.23	5.5244e-04	2.6938	1021.6388	9.000	10.5398	107.439	33.3098	1475.75	1026.1615	9	0.0000e+00
10.088	6.7589	3.3538e+04	2.6225	-0.23	5.6752e-04	2.6491	1021.6279	10.000	10.5547	107.589	33.3094	1475.77	1026.1659	16	0.0000e+00
9.079	6.7580	3.3536e+04	2.7023	-0.24	5.6490e-04	2.5765	1021.6174	9.000	10.5682	107.724	33.3084	1475.74	1026.1606	5	0.0000e+00
8.070	6.7588	3.3537e+04	2.4144	-0.24	5.2635e-04	2.6300	1021.6565	8.000	10.5679	107.723	33.3087	1475.74	1026.1561	5	0.0000e+00
7.061	6.7545	3.3527e+04	2.4294	-0.24	2.7676e-03	2.6419	1021.6377	7.000	10.5672	107.701	33.3033	1475.69	1026.1477	5	0.0000e+00
6.053	6.7451	3.3510e+04	2.4055	-0.23	8.2859e-04	2.6414	1021.6544	6.000	10.5575	107.572	33.2934	1475.63	1026.1365	6	0.0000e+00
5.044	6.7439	3.3507e+04	2.3612	-0.23	9.0908e-03	2.6430	1021.6542	5.000	10.5559	107.552	33.2918	1475.61	1026.1308	6	0.0000e+00
4.035	6.7439	3.3507e+04	2.3683	-0.23	1.9458e-02	2.6442	1021.6583	4.000	10.5536	107.529	33.2920	1475.59	1026.1263	6	0.0000e+00
3.026	6.7441	3.3506e+04	2.5869	-0.22	5.0062e-02	2.6453	1021.6574	3.000	10.5071	107.055	33.2915	1475.57	1026.1212	7	0.0000e+00
2.018	6.7444	3.3507e+04	2.4179	-0.20	9.0563e-02	2.6474	1021.6746	2.000	10.3080	105.029	33.2935	1475.56	1026.1181	5	0.0000e+00
1.009	6.7445	3.3511e+04	1.6947	-0.21	2.1373e-01	2.6490	1021.6148	1.000	10.0838	102.747	33.2977	1475.55	1026.1168	5	0.0000e+00
